The Internet[work]

DSTA

Summary of Trade Networks

The directed network model

Theme: discover non-trivial relationships among countries

look at how they trade and what they trade

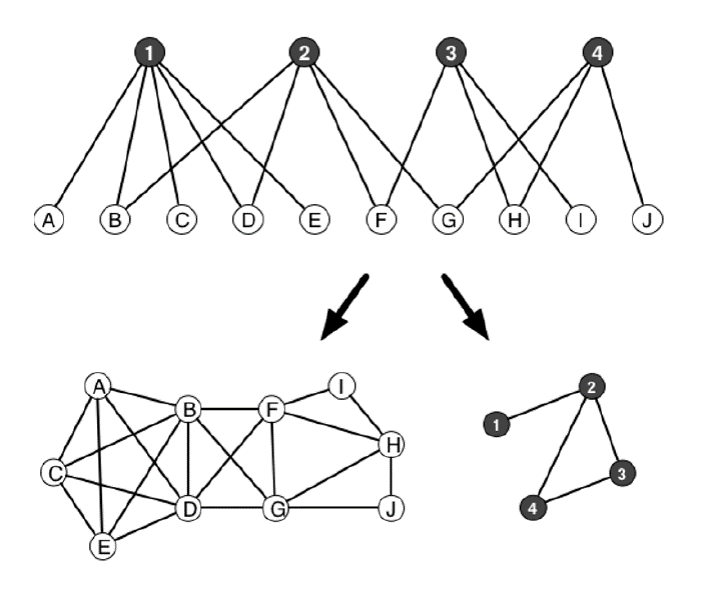

Bipartite networks

The country-to-product network induces country-to-country and product-to-product relationships.

Reconstruction

\[ C = M_{cp}\cdot M_{cp}^T \]

\[ P = M_{cp}^T\cdot M_{cp} \]

Analysis of neighbours

For a node i, let \(k_i\) be its degree.

For directed networks: \(k_i = k_i^{in} + k_i^{out}\).

The distribution of degree \(P(k)\) provides a signature of the network.

The average degree is denoted \(\langle k \rangle.\)

Reciprocity

For a given directed network, reciprocity is the probability that of having links in both directions between two vertices.

R measures how the economies of two countries become interconnected (or interdependent).

\[ r = \frac{L^\leftrightarrow}{L} \]

\(L^\leftrightarrow\): number of reciprocal links

\(L\): total number of links.

Assortativity

Do vertices tend to connect with those with similar/dissimilar degree?

Compute the avg. degree of \(i\)’s neighbors:

\[ K_{nn}(i) = \frac{\sum_{\langle ij\rangle} k_j}{k_i} \]

Find the avg. \(K_{nn}\) of nodes which have degree \(d\):

\[ K_{nn}(d) = \frac{\sum_{i:k_i=d} K_{nn}(i)}{n_d} \]

where \(n_d\) is the number of nodes having degree \(d.\)

Are \(d\) and \(K_{nn}(d)\) close?
does assortativity grow over time?

The Internet Network

The need for resolution

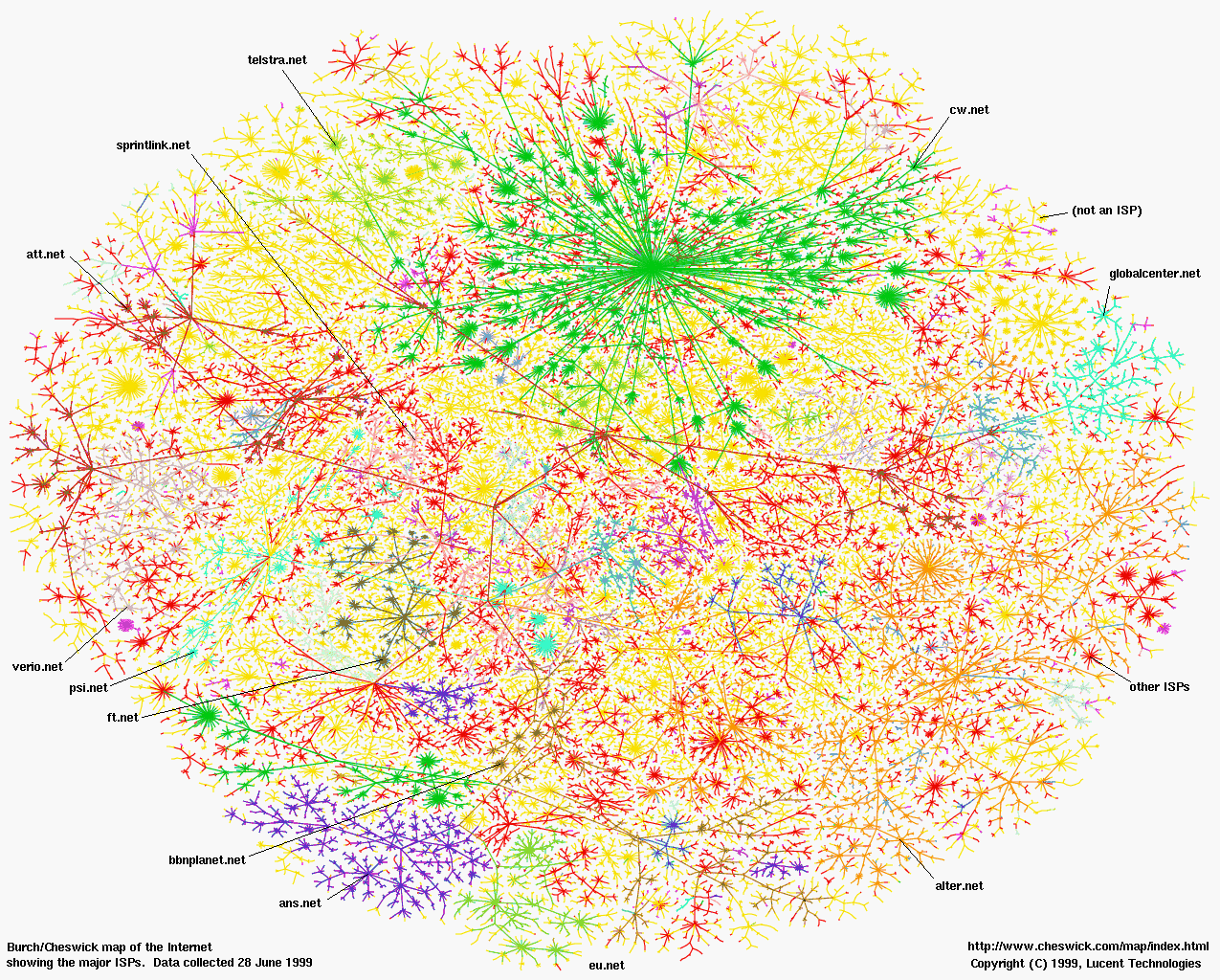

The Internet Service Provider network:

From visualisation back to data

Thanks to the Beautifulsoup project, images of networks in .svg format can be imported into a Networkx structure.

from bs4 import BeautifulSoup

FILE = 'data/svg-example.svg'

op = open(FILE, 'r')

xml = op.read()

soup = BeautifulSoup(xml)

G = nx.Graph()

attrs = { "line" : ["x1", "y1", "x2", "y2"] }

# what lines are there?
for attr in attrs.keys():
    tmps =  soup.findAll(attr)

Details in Ch. 3 of the textbook.

Node Centrality

Find important nodes

Centrality is about importance, of a vertex or edge, within the whole network.

The topology of the network should reflect such importance, so we do not need to inspect the entities.

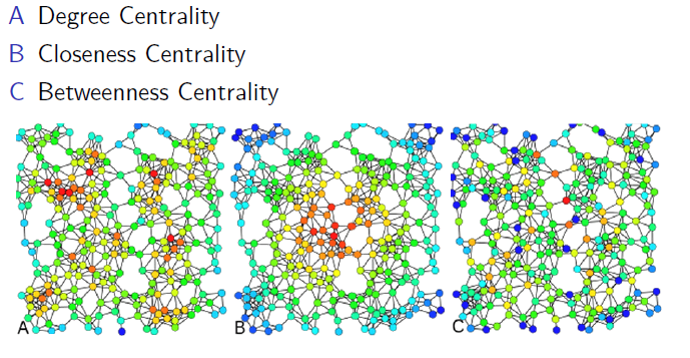

Comparing centralities

Degree centrality

High degree leads to higher centrality

Closeness centrality

Being in close reach to anywhere.

Let \(d_{ij}\) be the distance between \(i\) and \(j\) on the graph.

\[ c_j = \frac{1}{\sum_{j\neq i} d_{ij}} \]

Harmonic centrality

Immunised against isolated vertices/disconnection

\[ c^h_j = \sum_{j\neq i} \frac{1}{d_{ij}} = \sum_{d_{ij} < \infty, j\neq i} \frac{1}{d_{ij}} \]

Betweenness centrality

Being in the middle/facilitating all contacts/conversations

Let \(D_{jl}\) be the number of distinct paths that exist between node \(j\) and node \(l\).

Let also \(D_{jl}(i)\) be the number of those paths that go via \(i\)

\[ b(i) = \sum_{\stackrel{j,l=1..n,}{i\neq j\neq l}}\frac{D_{jl}(i)}{D_{jl}} \]

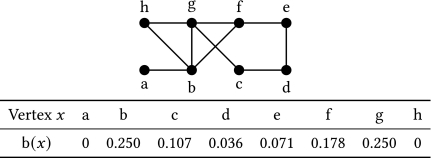

1 shortest path in 4 (or 25%) goes through b, the same with g.

[Brandes 2001] computes \(b(i)\) in \(O(|V|\cdot |E|)\): too slow to be practical even on small networks.

Estimates based on sampling are used instead.

Good estimates are valuable when the network evolves in a fully-dynamic way: edges and vertices are arbitrarily inserted/removed over time.

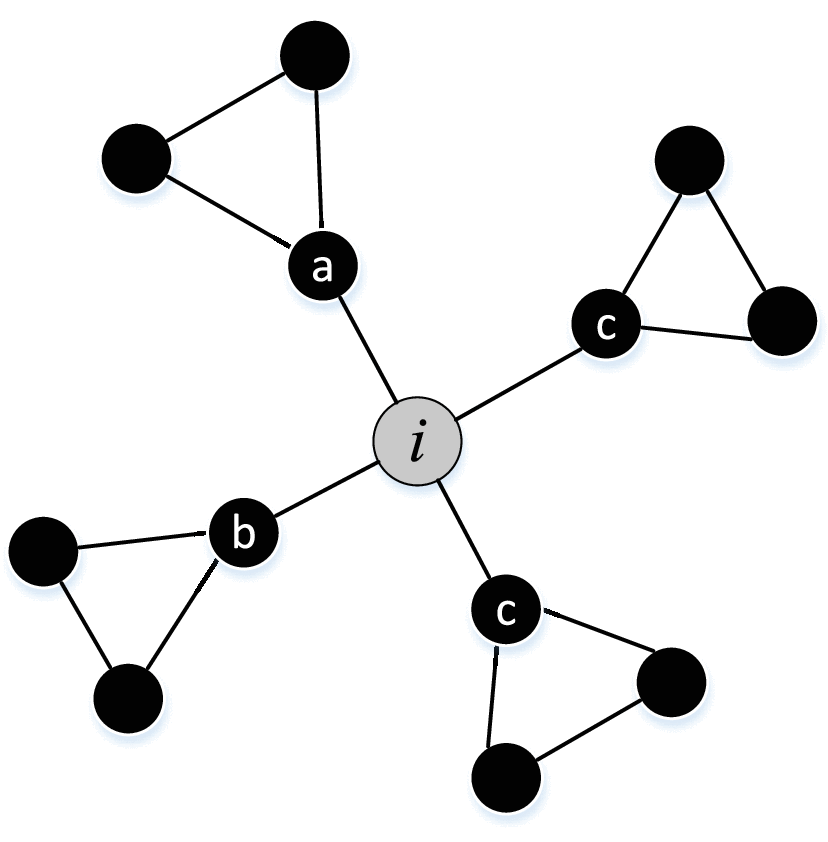

Eigenvector centrality

A reflective definition

my c. is the average of my neighbors c.’s,

which in turn depends on my own centrality.

The dominant e-vector \(\mathbf{v_1}\) describes the direction of maximum shape-preserving expansion

\[ A \mathbf{v_1} = \lambda_1 \mathbf{v_1} \]

\[ \mathbf{v_1} = \frac{1}{\lambda_1} A \mathbf{v_1} \]

For each vertex \(i\):

\[ v_{1_i} = \frac{1}{\lambda_1} \sum_{j}a_{ij}\cdot v_{1_j} \]

which is the needed centrality measure.

Computing Eigenvector centrality

Compute the dominant Eigenpair \((\lambda_1, \mathbf{v_1})\) of A;
sort vertices according to the \(v_{1_i}\) value they “scored.”
