Massey’s ranking
Rating and Ranking
Motivations
the ability to
rate something (is this a cold day for February in London?), or to
rank a set of elements (which is the coldest day of the month?)
is part of Science and Engineering since before Data Science.
Rating & ranking is a good framework to introduce Data Science techniques of general value and wide applicability.
Sports R&R is both fun and a huge Data Science market!
Definition
A measure of value of the subject, as objective and replicable as possible.
E.g., temperature.
Normally, abilities are
latent
hard to measure
time-dependent
place-dependent
Exercise: take the Prof or Hobo? quiz!
yet, abilities are also
hard to transcend (revert-to-the-mean effect, RTTM)
relatively easy to perceive and project
Example: Football
- hard to guess the single score \(\Longrightarrow\) entertainment value
- easy for experts to guess the long-term effect \(\Longrightarrow\) different levels of enjoyment; RTTM: Revert To The Mean effect
Low scoring creates randomness
Formalisation
1-dimensional ranking
\(P:\) players, \(|P|=n\)
\(T:\) time instants
\(r: P \times T \rightarrow \mathbb{R}\)
A given rating function \(r\) creates a ranking (\(\rho\)) on a set:
\[ \rho: P \times T \rightarrow [1..n] \]
\[ \rho(p, t) = k \leftrightarrow |\{p_j: r(p_j, t) \leq r(p_i, t)\}| = k \]
\[ \delta(p_i, p_j, t) = |r(p_i, t)-r(p_j, t)| \]
\(\delta\) captures both similarity and distance
multi-dimensional ranking
Multi-dim. rating:
\[ r_{multi}: P \times T \rightarrow \mathbb{R}^d \]
Often:
\[ r_{multi}(p_i,t) : f(r_1(p_i,t), \dots r_d(p_i,t)) \]
Pareto dominance:
\(p_i\) dominates \(p_j\) (at time t) if on every dimension \(x\)
\[ r_x(p_i,t) \ge r_x(p_j,t) \]
Rating in games
Ratings in games
- score-based games are better-suited to create ratings
- yet effect of time and hardness of the proposed test match could be hard to assess.
Should games keep user ratings?
Yes:
- feeling of improvement
. . .
- a gauge for new features
. . .
leads to rankings:
better matchmaking \(\Longrightarrow\) entertainment value
fraud/anomaly detection?
No: game prowness as social ranking?
The spectacle is a social relation mediated by images, not a collection of images.
«Le spectacle n’est pas un ensemble d’images, mais un rapport social entre des personnes, médiatisé par des images»
[Guy Debord, La Société du spectacle (1967), Thèse 4]
- a reflection of US culture?
a turn-off for people who don’t feel competive?
turns-off casual users?
Sport ranking/estimation
Domain
n teams play each other in a tournament
final scores are recorded, e.g., Real Madrid–Borussia Dortmund: 2-0.
predict the score for a match in the future.
-focus on predicting the score difference (eg, 2-0=2)

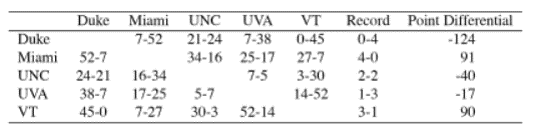

Running example
the win-loss balance and the points balance are second-level performance measures
they are not considered sufficient to create valuable ratings/rankings/predictions.
[In]credible Assumptions
- to each team a latent variable for strength is assigned
numerical ratings determine a ranking among teams (at t=end, so we can drop it)
and a prediction \(Pr[a\rightarrow b] = \frac{\rho(a)}{\rho(a)+\rho(b)}\)
strength/rating is immutable during the tournament
teams play each other exactly once during the tournament
Now, consider the score difference in each match, say \(i\) vs. \(j,\) defined as \(s_i - s_j\)
Define \(\mathbf{y}_{m\times 1}\) as the vector of all score differences in matches
Assume (assumption 4) that strength/rating imbalance determines score difference:
\[ r_i - r_j = s_i - s_j \]
\[ X_{m\times n}\cdot \mathbf{r}_{n\times 1} = \mathbf{y}_{m\times 1} \]
\[\begin{equation*} \begin{bmatrix} 0 & 0 & +1 & 0 & -1 & 0 \\ & 0 & \ddots & \ddots & & \\ & \ddots & \ddots & \ddots & \ddots & \\ & \ddots & \ddots & \ddots & \ddots & \\ & & \ddots & \ddots & \ddots & \\ 0 & -1 & 0 & +1 & 0 & 0 \end{bmatrix} \end{equation*}\]
\(X_{m\times n}\) with \(m>>n\) is overconstrained, no hope of finding a solution.
Massey’s ratings
Data preparation
Massey considered the equivalent formulation of
\[ X_{m\times n}\cdot \mathbf{r}_{n\times 1} = \mathbf{y}_{m\times 1} \]
as
\[ X^T \cdot X \cdot \mathbf{r} = X^T \cdot \mathbf{y} \]
Both sides are easier to work with.
On the right-and side, \(X^T \cdot \mathbf{y}\) is the all-season points difference vector, called \(\mathbf{p}.\)
Notice that \(\sum p_i=0\).
On the left-hand side,
\[M_{n\times n}\ =\ X^TX\]
is squared, semidefinite and positive.
However, the rows sum to 0 and cols. are not independent: 0/\(\infty\) solutions ensue…
M. also noticed that M has a fixed structure and does not need to be re-computed all the times.
\[\begin{equation*} \begin{bmatrix} n-1 & 0 & -x & 0 & -y & 0 \\ & n-1 & \ddots & \ddots & & \\ & \ddots & \ddots & \ddots & \ddots & \\ & \ddots & \ddots & \ddots & \ddots & \\ & & \ddots & \ddots & \ddots & \\ 0 & -z & 0 & -w & 0 & n-1 \end{bmatrix} \end{equation*}\]
\(m_{i,i} = n-1\) is the numbers of games \(i\) played,
\(m_{i,j}\) is the negation of the no. of matches between \(i\) and \(j:\) here all values are set to -1.
Massey
drops the last row/match
replaces it with a row of 1s, and sets \(p_n=0\)
(all ratings, positive and negative, will sum to 0)
\(\overline{M} = M\) everywhere but for the last row which is full of 1s
\(\overline{\mathbf{p}}\) is \(\mathbf{p}\) everywhere but for the last el. \(p_n = 0\).
now \(\overline{M}\) is non-singular and invertible
solves
\[\overline{M} \mathbf{r} = \overline{\mathbf{p}}\]
to obtain an approximated rating for the teams.
The MSE solution to Massey’s formula is a form of regression.
It can also be seen as \(\mathbf{r} = (\overline{X^TX})^{-1} \overline{X^T \mathbf{y}}.\)
Output
ratings sum to zero
values have no direct interpretation.
however, they effectively generate a hierarchy.
Conclusions
Points to focus on
- rating and rating is the fun side of Data Science!
latent variables that represent non-measurable skills
those leave in a feature space possibly separated from the data space
yet they may get a numeric estimate, and inform our predictions
Massey regresses on the latent variables
